Bartlett

Designed for:

Bike Park / Freeride / Enduro

The Bartlett is in it's own unique class being at home on long-travel all-mountain bikes, freeride or bike park rigs. The dual-crown design provides space efficiency over a single-crown, allowing longer travel at shorter axle-to-crown lengths, as well as stiffness and steering precision.

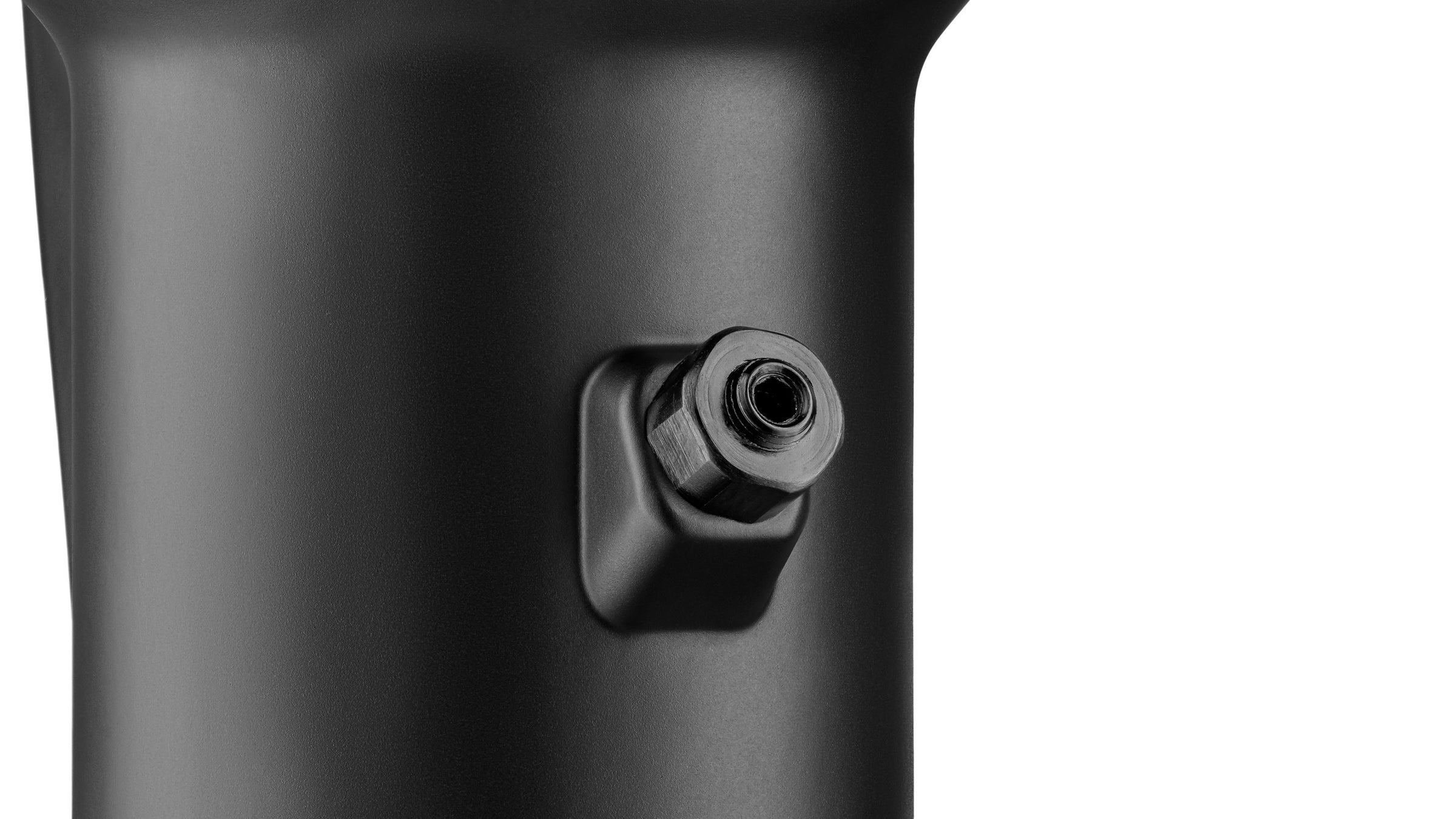

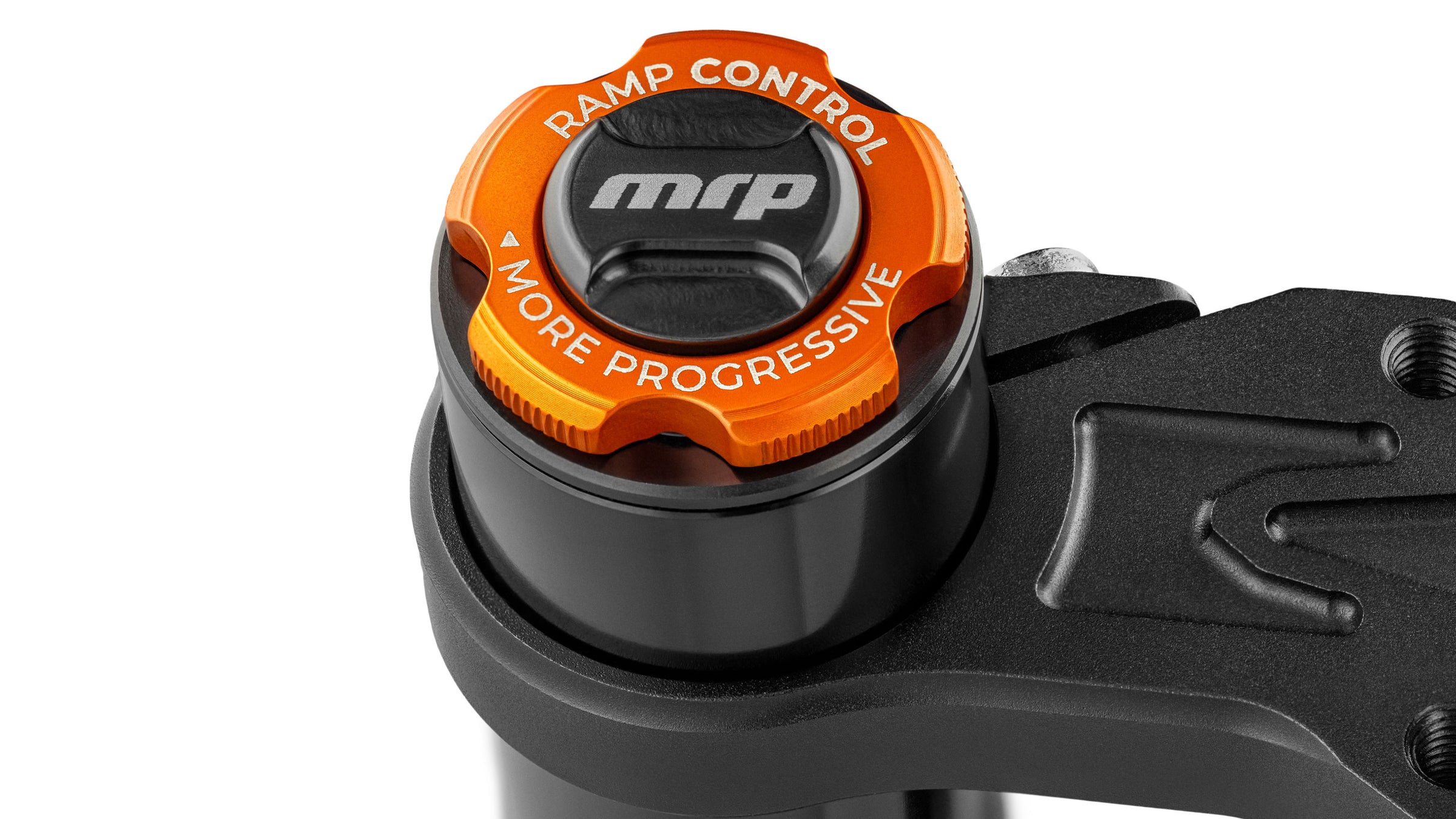

We took features from our award-winning Ribbon and added more! You'll get the highly-tunable FulFill air spring, low-pressure IFP damper, PSST pressure relief valves and the Outcast arch design. In addition to our Ramp Control technology, the Bartlett also features Huck Pucks - threaded spacers that attach to the Ramp Control allowing you to further tune your air-spring volume.

TRAVEL: 170mm, 180mm or 190mm

WHEEL SIZE: 27.5”, 29”

STANCHION SIZE: 35mm

WEIGHT: 5.5 - 5.7 lbs.

SPRING SYSTEM: FulFill independent positive & negative chamber system

EXTERNAL ADJUSTMENTS:

Positive air-spring pressure, negative air-spring pressure, 8-position low speed compression, 16-position Ramp Control and rebound

INTERNAL ADJUSTMENTS: Travel (5mm increments), spring volume

OFFSET: 49mm (27.5")
51mm (29")

BRAKE MOUNT: 180mm PM

AXLE: 15x110mm
QR axle standard, Bolt-on optional

COLORS: All black chassis with 9 decal color options

MSRP $1,289.95

AVAILABLE LATE JULY
